Possibly.


If you purchased your Iris MX at the same time as the complete Iris M™ system, these steps were done before the system shipped. If you purchased the Iris MX later, there are a few settings that need to be confirmed on your computer.


The first is that your license supports the Iris MX, second is that “Jumbo Packets” are enabled, and third is that the connection can pass through the firewall.


Please follow the steps below to confirm, and change as necessary, these settings.



Refresh Your License:



If you have already connected your camera to the computer with the ethernet cable and adapter, you may receive the error message shown below.



Click OK to close the window and continue following these instructions.







Insure you have a connection to the internet.

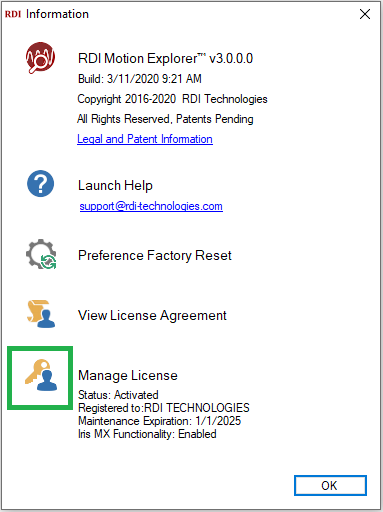

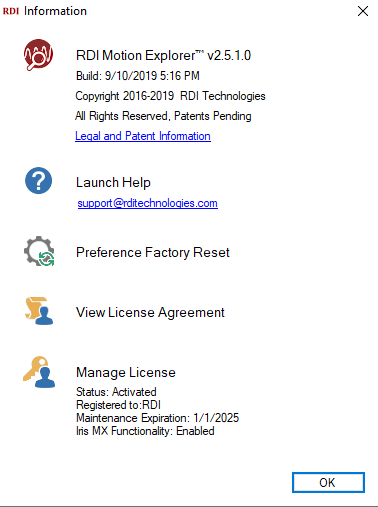

Open Motion Explorer and click the blue  in the top right corner. The “RDI Information” window will pop-up, click the icon to the left of “Manage License.”

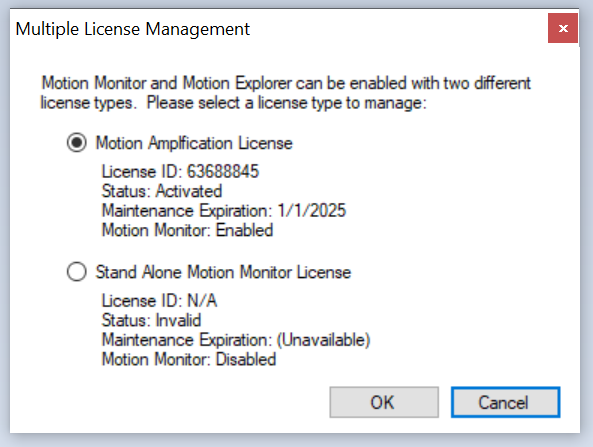

From the Multiple License Management window, select the “Motion Amplification License” bubble and click OK.


NOTE- “Stand Alone Motion Monitor License” should only be selected for use in conjunction with the Iris CM.

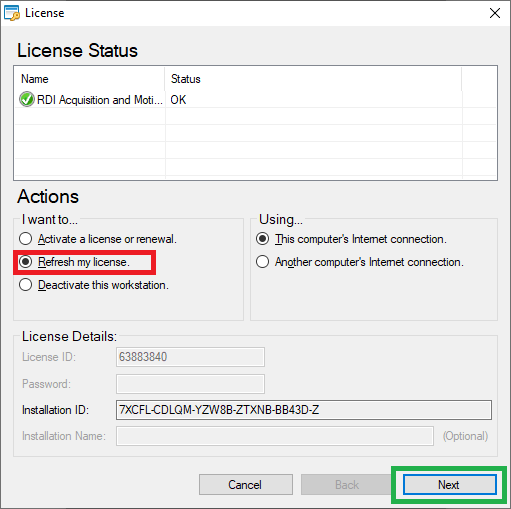

You will now have three actions available to you, please click “Refresh my license,” then click “Next”.

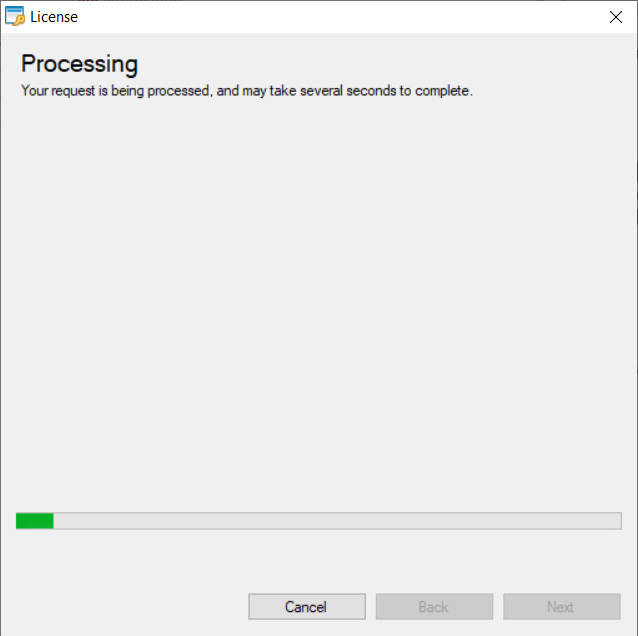

After clicking next, you should briefly see a “Processing” pop up that looks like the picture below.

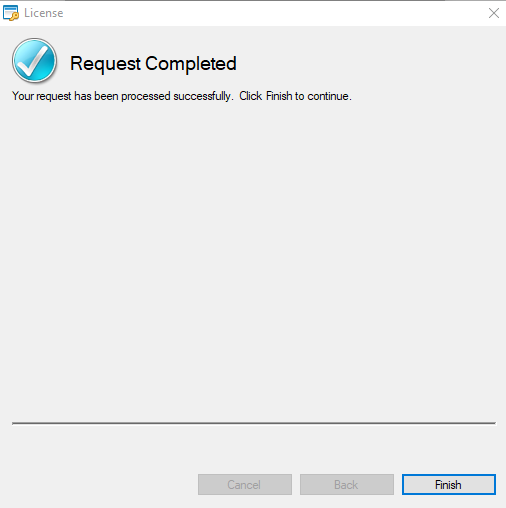

After the license is processed, you should see the “Request Completed” screen shown below. Click “Finish” to complete the request.




Close the RDI Information window by clicking “OK.”




Verify that the Iris MX™ software is active by following these steps.



Close Motion Explorer, connect the camera, and open RDI Acquisition using this icon . You should see these indicators that the software has detected an Iris MX camera.


You should see a red power button in the upper right-hand corner of the window.

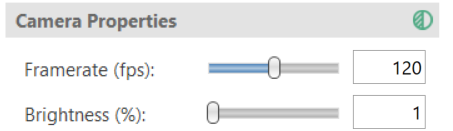

Under “Camera Properties”, the framerate should show 120 fps and be about midway on the slider.

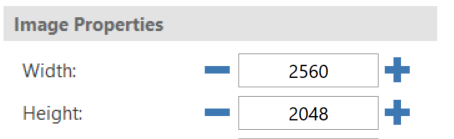

The “Image Properties” should show the Width and Height settings shown below.

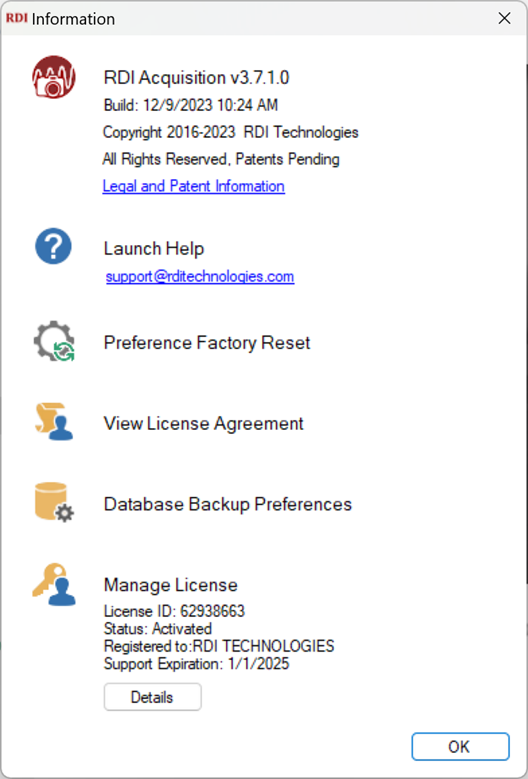

You can also click the blue in the top right corner. The “RDI Information” window will pop-up, click the icon to the left of “Manage License.”


The “Iris MX™ Acquisition” line should say “True” as shown below.


Click OK to close the window.





Enable Jumbo Packets/Frames:

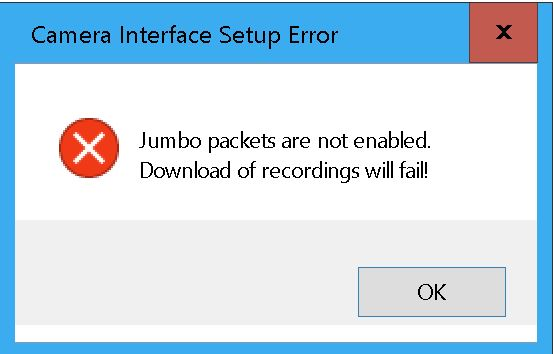

If you have already connected your camera to the computer with the Ethernet cable and adapter, you may receive the error message shown below. Click OK to close the window and continue following these instructions.





Make sure that the Ethernet adapter is plugged into one of the USB ports on the computer.

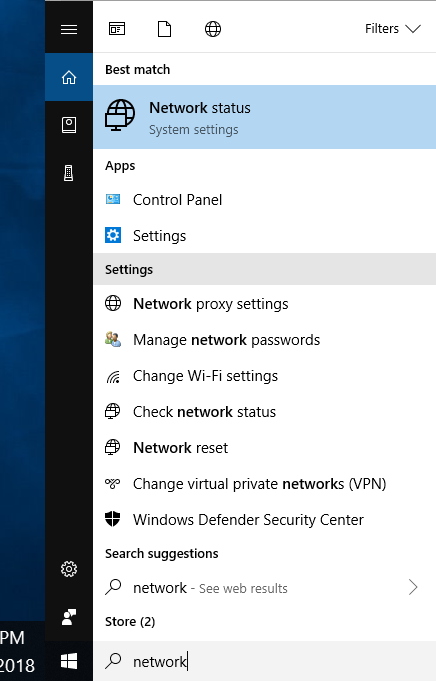

Type “network” into the Taskbar Search Bar on the bottom left-hand corner of the Taskbar

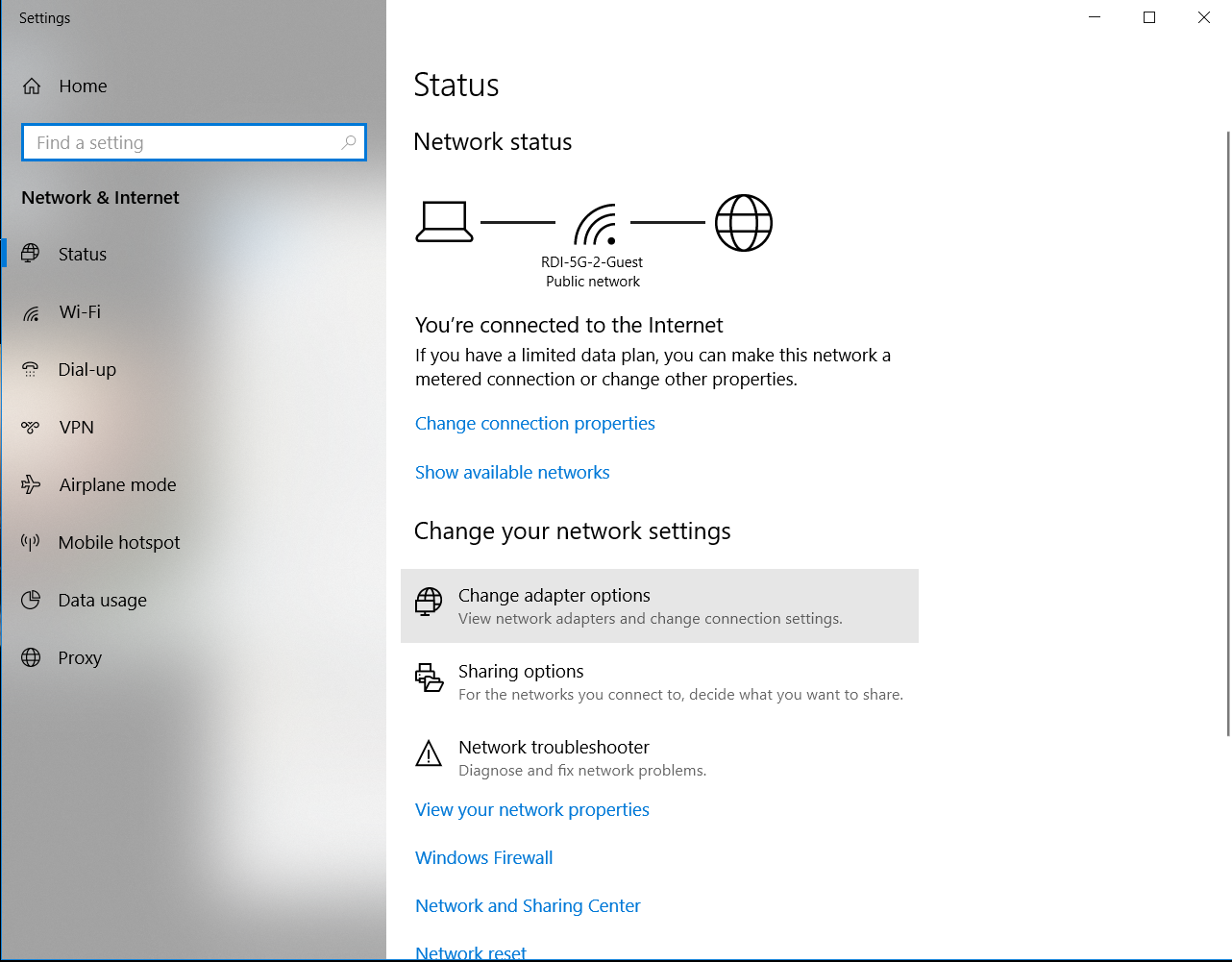

From the list, double-click on the “Network status” setting the “Network Status” window will appear. Click on the “Change adapter options” link from the middle of the page.

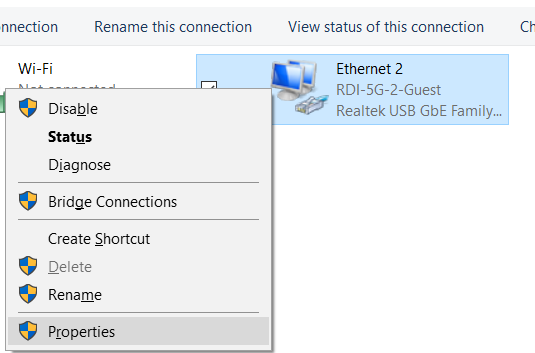

Right-click on the “Ethernet X” connection and select “Properties” from the new pop-up menu. Each Ethernet adapter will be assigned a number. Determine the specific number of the adapter that correlates to the one used with your Iris MX™ camera.

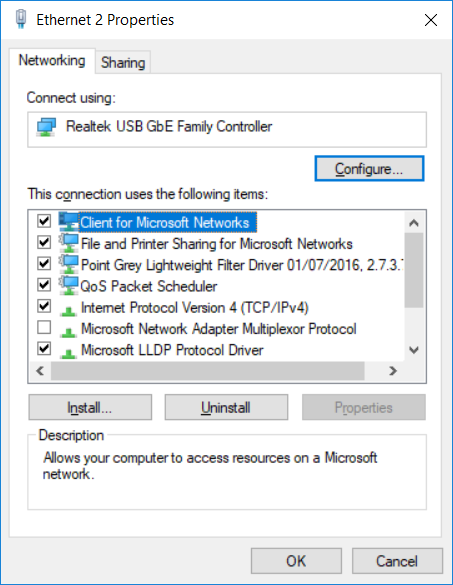

In the Ethernet X Properties window, while the “Client for Microsoft Networks” line is highlighted, click on the “Configure” button.

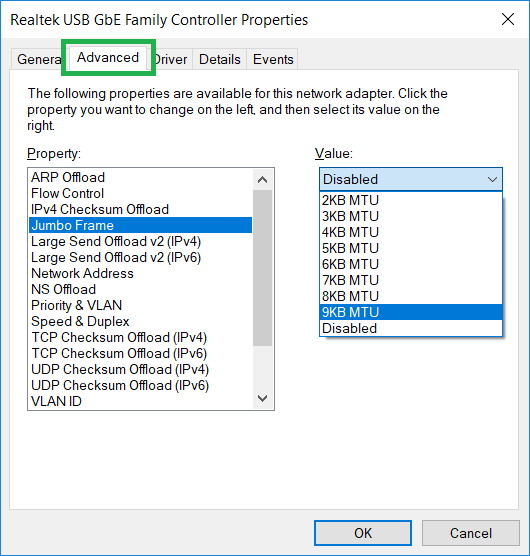

In the Network Controller Properties window, click on the “Advanced” tab. From the left hand “Property” list, select “Jumbo Frame/Packet.” Shown below are several different ways Microsoft will present this setting dialog. If your Adapter will not support some form of the “9KB/9014” setting, you will need to use a different adapter.

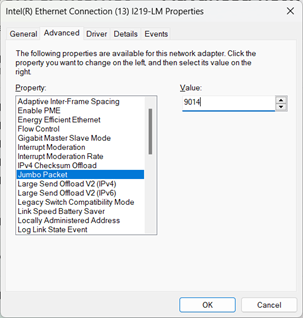

NOTE - Some Network Adapters and/or versions of Windows may not show the drop-down lists presented below. In those cases, it is acceptable to manually enter "9014" into the field and select "OK".


Manual Entry


 Drop-down showing a “9KB MTU” selection



Depending on your version of Windows, the above screen may show the selections below. Select the 9014 Bytes line as shown below.





Close any remaining windows and continue as below.



Firewall Settings:

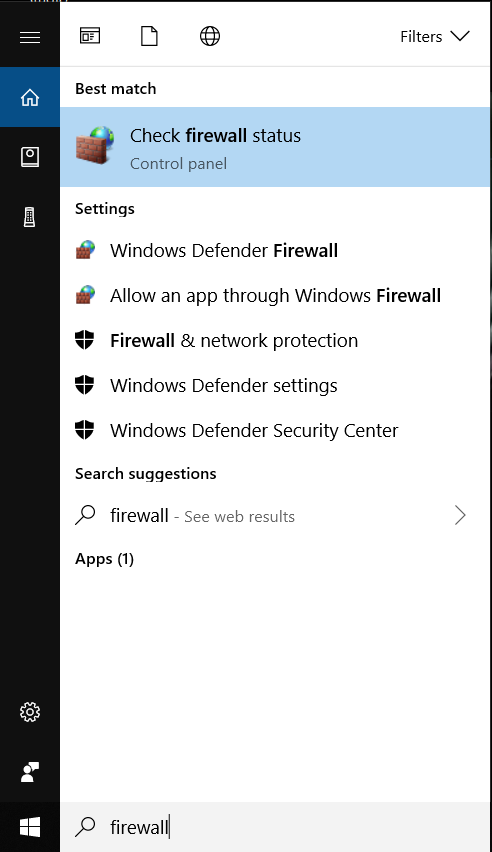

In the Taskbar Search window in the bottom left-hand corner of the Taskbar, type “firewall”

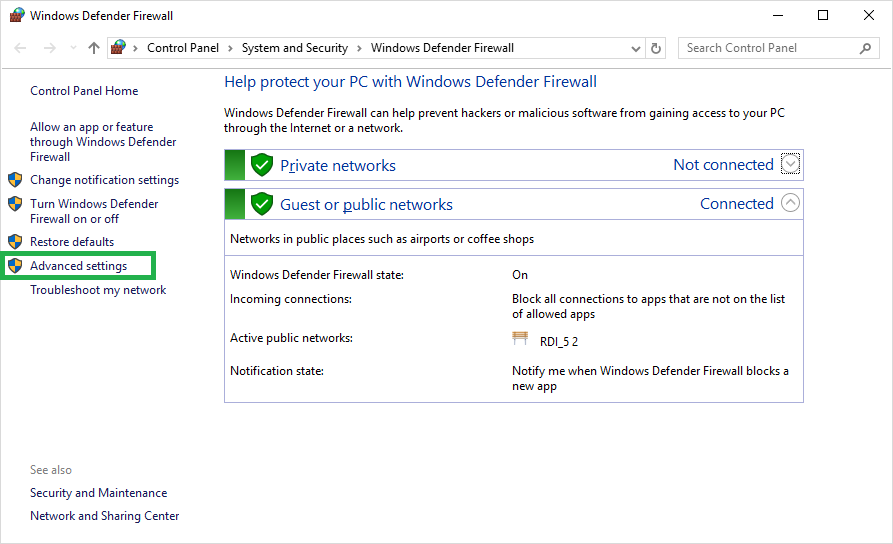

Select “Check firewall status” from the list of items displayed and the “Windows Defender Firewall” window will appear. In the list on the left, select “Advanced Settings” to display the “Windows Defender Firewall with Advanced Security” window.

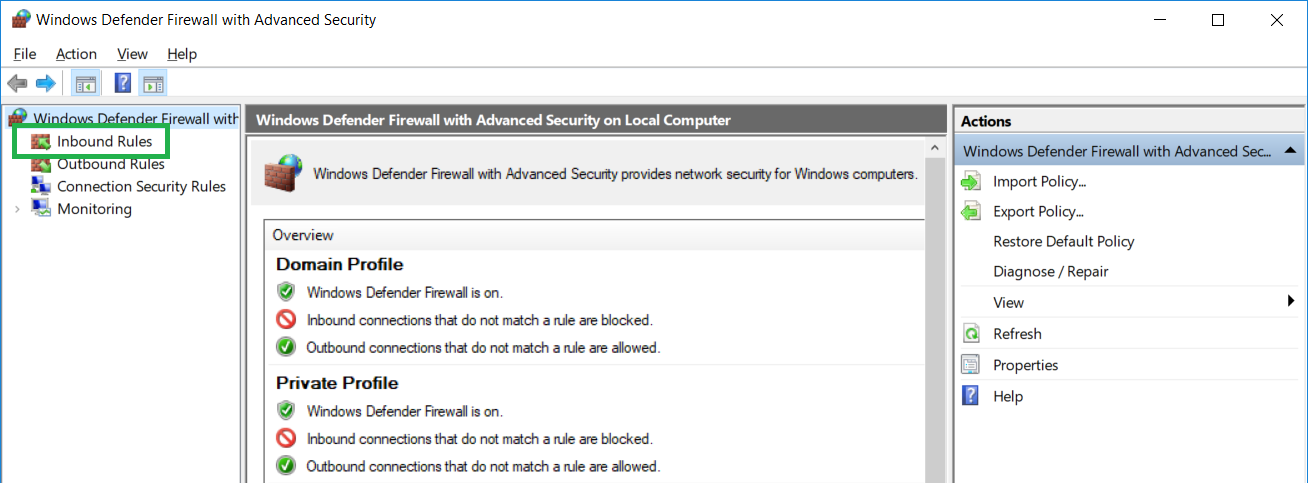

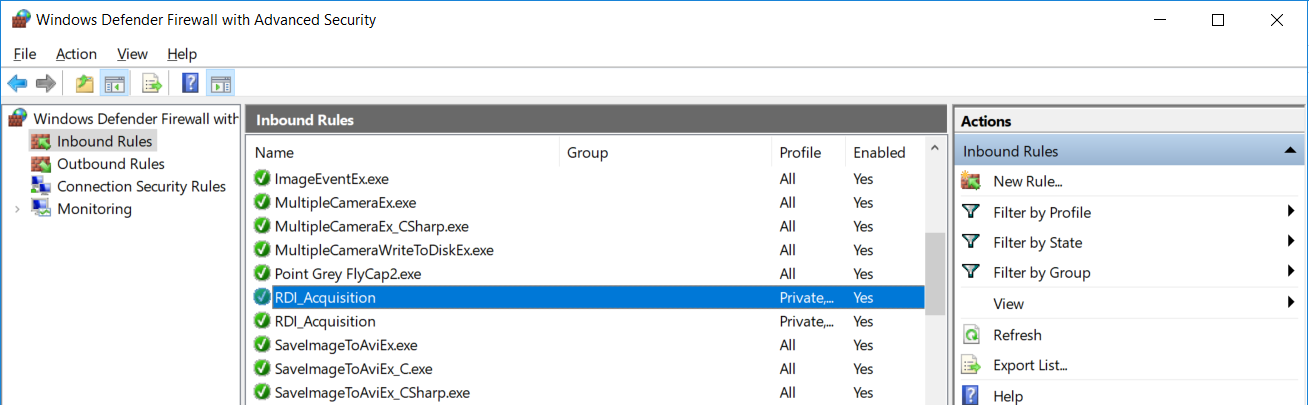

In the left-hand column, select “Inbound Rules” to display a new list.




Scroll down until you see “RDI_Acquisition”


NOTE – This list is alphabetical but with two different groupings. The RDI_Acquisition will typically appear in the top group but check both as needed.

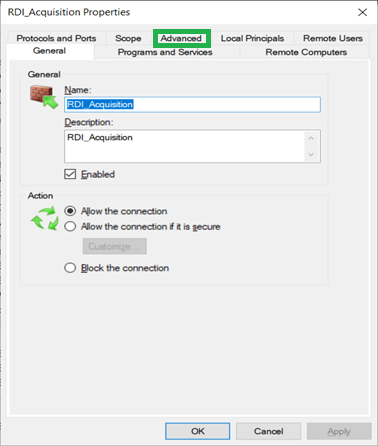

Double-click on the top RDI_Acquisition line in the list to display the “RDI_Acquisition Properties” window.

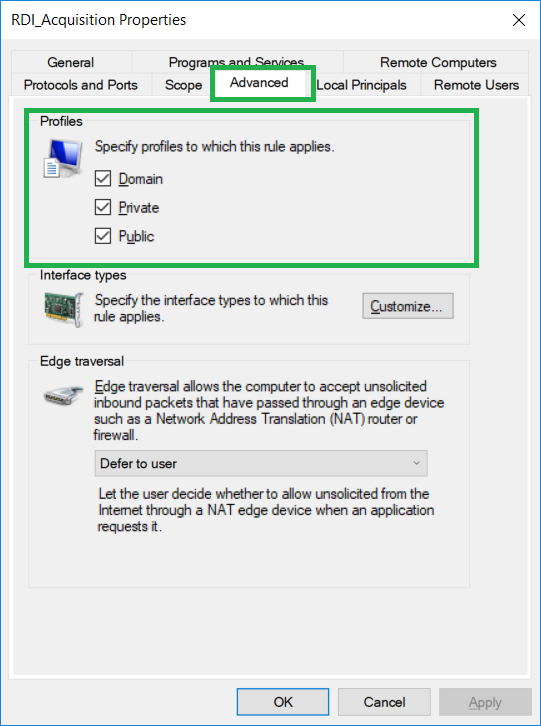

When you see this window click the “Advanced” tab.



On the “Advanced” tab, make sure that all three of the top “Profiles” boxes are checked.





Click OK to close this window and repeat for the second listing of “RDI_Acquisition”

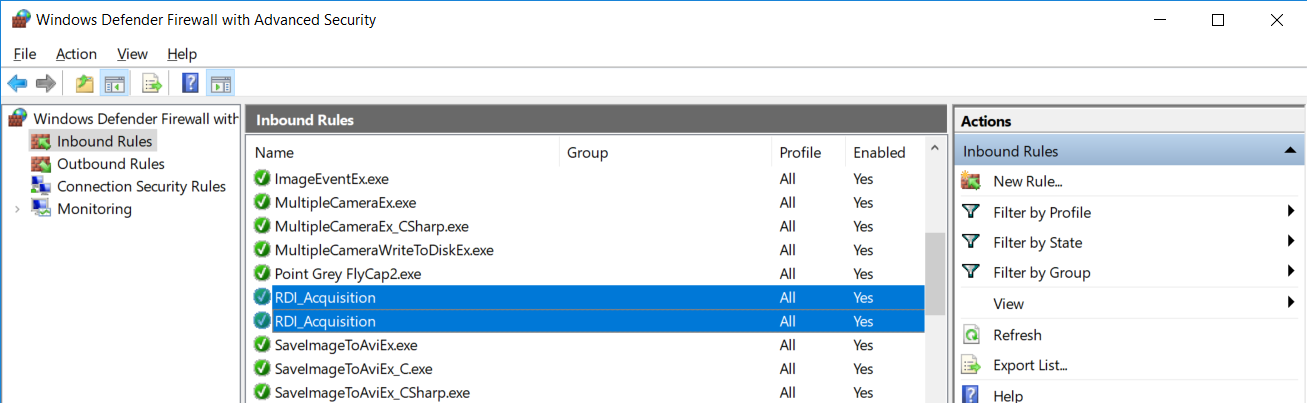

When you are finished, the entries should look like those shown below. Each entry in the list for “RDI_Acquisition” should say “Profile – All” and “Enabled – Yes”.





Close any open windows. Your computer is ready to use with the new Iris MX™ camera.




These instructions are duplicated in the attachment which is downloadable.
